Horizontal

TAVOLO MID GASTRONOMIA TN/BT

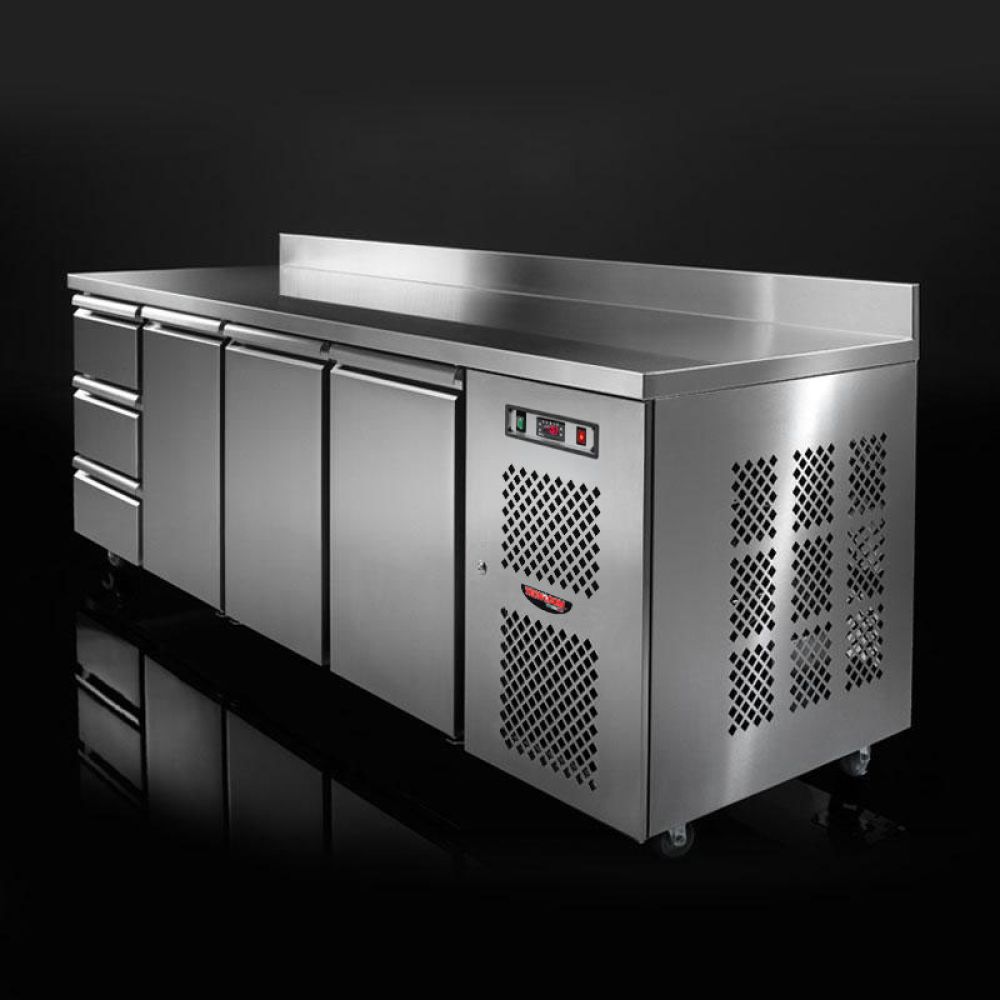

GN refrigerated counter, TN and BT versions.

Refrigerated counter for food preparation. Endless solutions to meet any use requirements.

Ideal for

GastronomyDairy productsCured meats

Depth: 700 mm
Heights: M SP 800/870 · GN 840/910 · GNAL 940/1010 · GNGRA 830/900 · GNL 1150/1200 · GNSK 1050/1120 mm
Lengths: TF02 1420 (CG) / 1200 (SG) mm · TF03 1870 (CG) / 1650 (SG) mm · TF04 2320 (CG) / 2100 (SG) mm
Versions: Glass doors (PV, not for BT) · Built-in unit (CG) · Remote unit (SG) · Unit on the right or left
Test Data: Temperature +30°C / relative humidity 60%
Refrigerant: R290 (on request)
Refrigeration: Ventilated (V)
Insulation Thickness: 50 mm
Operating Temperature: +2°C / +8°C (TN) · -18°C / -22°C (BT)

Interior and exterior in stainless steel, external base in galvanised steel
Rounded internal corners
High-pressure injected CFC-free polyurethane insulation (density 40 kg/m³)
Electronic front control panel — 1 NTC probe for TN, 2 NTC probes for BT
BT counters with evaporator heater, drain heater, door edge heater and thermostatic valve
Lockable opening motor compartment for easy condenser inspection and cleaning
Extractable monobloc refrigeration unit, also available with remote condensing unit
Evaporator with anti-corrosion cataphoresis treatment
Fully automatic defrosting and condensate water evaporation
1 plastic-coated GN 1/1 grid and 1 pair of L-shaped stainless runners per door
Available with top (SP) or granite worktop (GRA)
